Has your BMW dashboard lit up like a Christmas tree with a mysterious 480A fault code? Don’t panic! At First Auto Centre, we’re here to break down what this 480A BMW fault code means in plain English. As independent BMW specialists, we’ve seen this particular gremlin pop up more times than we can count.
The 480A fault code on a BMW typically indicates an issue with your vehicle’s battery or charging system. In simpler terms, it’s like when your mobile phone shows a battery problem - except this is happening in your much more expensive BMW! As any decent independent BMW specialists will tell you, these German machines can be a bit finicky about their electrical systems.
Co kód 480A obvykle znamená
Several things can trigger this particular fault code. 1. Your BMW’s battery is often the primary culprit. These sophisticated German machines are particularly sensitive to battery health. 2. The alternator is like your car’s power station - it recharges the battery while you drive. If it’s not working properly, you’ll eventually run out of electrical juice. 3. Modern BMWs use sophisticated power management systems to control electrical flow. When these systems fail, the 480A code often appears. 4. The invisible network of wires in your BMW must maintain perfect connections.
Yes, it’s possible. BMW’s sophisticated electrical systems rely on numerous sensors, and a faulty one can trigger false codes. Most quality batteries last 3-5 years, but this varies based on driving habits and climate. During regular BMW servicing, we can test your battery’s health and advise on replacement before problems develop.
Příznaky, které doprovázejí kód 480A
How do you know if you’re dealing with a 480A fault beyond just seeing the code? If you’re experiencing any of these symptoms alongside the 480A fault code, it’s definitely time to get your BMW checked by a specialist. The sooner you address it, the less chance of being left stranded with a car that refuses to budge!
Tempted to just ignore that pesky fault code? While your car might still run, driving with this active fault code isn’t recommended. You risk being stranded if the electrical system fails completely, and let’s face it - that always happens at the most inconvenient time possible, doesn’t it?
Diagnostika a odborné řešení
When you bring your BMW to us at First Auto Centre, we use sophisticated diagnostic equipment to pinpoint the exact cause of your 480A fault code. This thorough diagnostic approach ensures we find the actual problem, not just the symptoms. While some car problems are straightforward, electrical issues like the 480A fault code require specialised knowledge and equipment. Our BMW specialist technicians have years of experience with these specific systems, saving you time and potentially preventing costly mistakes.
At First Auto Centre, our BMW servicing includes thorough electrical system checks specifically designed to catch these issues before they leave you stranded. The Battery Council International recommends checking BMW batteries at least twice yearly, as luxury vehicles with sophisticated electronics put extra strain on electrical systems.
Náklady na opravu
Repair costs vary depending on the underlying cause. Battery replacements might cost £100-£300, while alternator repairs typically range from £300-£800. Complex electrical issues can be more expensive.
Occasionally the code might disappear temporarily if the issue is intermittent, but without fixing the root cause, it will almost certainly return.
Praktické rady a zkušenosti z praxe

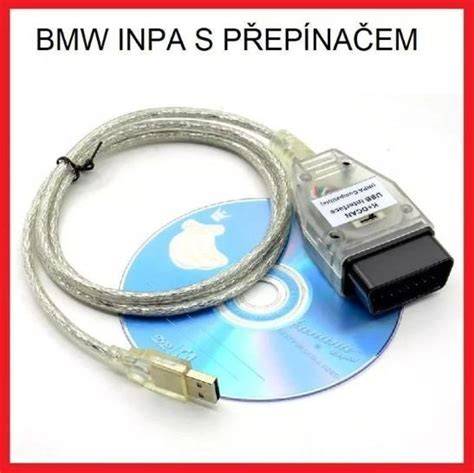

For what it's worth, the car felt very different when I drove it this evening. The first time I got the codes read/ reset at a local garage. It cost £35, and they provided the code and description. After that, I bought a K+DCAN cable and software from eBay ( check my K+DCAN thread for details ), and that allowed me to read / clear whenever I wanted. As a precautionary measure i added this to my tank yesterday before heading off on a 100 mile journey. Immediately upon hitting the motorway in cruise control, i noticed he mpg needle swing from 50mpg to 20mpg, it stayed like this for a couple of miles before hitting 50mpg again, didnt notice anything else throughout the motorway run. Upon exiting the motorway and driving through the local roads the car felt much more responsive and eager to rev as well as free flowing.
Essentially, yes. Hook up to a laptop; you'll probably get INPA software with the cable, but it's not a straightforward install. I spoke to a few garages about different techniques of clearing a DPF. One bmw specialist told me they didnt want to force a regen as itll run whilst the car was stationary as i posted in a video in here. I then headed to my nearest motorway 30miles away. The light came on as i expected, but before joinig the motorway i pulles into the services and cleared the codes (i did this with the engine running for the first time... Wether this helped i dont know?)i then did around 40miles at a constant 80leptons and guess what.... Only a smell of eggy crap and the dpf cleaner! Ive since done an extra 70miles with no light so 110 all in! HOW DID YOU actually Clear the codes?
Související problematika: DPF a chybové kódy 480A/481A
One of the more common sets of fault codes we see come from the BMW diesel engines produced after around 2005/2006. These fault codes are 480A and 481A. Both of these fault codes relate to the DPF being excessively clogged, in other words blocked. Firstly, here's what I've learned: Fault code 480A is caused by increased backpressure at DPF. Once this fault is logged, the DPF will NOT attempt regenerate. Fault code 481A is caused by significantly increased backpressure. Once this is logged, the iDrive or OBC will log "Particle Filter!"
A DPF cleaner (additive) will help the DPF regenerate. A DPF cleaner (additive) will not solve a DPF warning on it's own. Once the cleaner has run through the system in a tank of fuel, the car must be able to regenerate. The amount of fuel in the tank must be above a certain level.
B. They will remove the filter, sometimes with a straight through pipe, sometimes by simply smashing the internals of the filter to pieces. - This is illegal and should it be detected is a straight MOT FAIL. It will also cause the car to smoke under acceleration. Remember DPF filters are there for a very good reason.
Praktické zkušenosti z fóra a doporučení
For my motor I found part number 18307812283 per links you sent, but without guarantee of correctness, BMW price approx €1800, so cleaning for €150 is worthwhile. I know how to clean it at home, but I do not recommend it, I wouldn't do it again, because the saved money is not worth it. Even after home cleaning, subsequent emissions are absolutely fine.
Máš DPF ucpané na beton. Pokud už je auto v limp modu a nemá výkon, tak ho jízdou nevyčistíš. Vyměnit DPF, nebo nechat vyčistit. Wapkou ho leda zničíš. Pokud ještě má auto výkon dá se pasivně regenerovat do fáze, kdy lze zapnout servisní reg. Podmínkou jsou splněné podmínky pro spuštění reg.
Ten EGP senzor jsi jak zjistil, že je špatný? Byla chyba, tak jsi ho vyměnil? Jaké udával live data? Už to je úpřešené jednotka neregenerovala přes 9000km! myslel jsem že to je nesmysl,ale asi po 100km to zregenerovalo a zůstala tam jen 480A.
DPF warning se dá vymazat jen přes diagnostiku, ale nemazal bych ji, bez řešení co s DPF. Dá se s tím jezdit x tisíc km, ale je to potřeba časem řešit. Ucpané DPF umí i zničit motor, popř. napáchat i jiné škody.
Postup při řešení a tipy
- Nejprve diagnostika - připojte KTS/INPA/Carly nebo obdobné zařízení a zjistěte přesné kódy a živá data.
- Otestujte baterii, alternátor a připojení - u kódu 480A může být problém i v elektrice.
- U DPF problémů zkontrolujte tlakové senzory a těsnosti hadic za turbem, netěsnosti mohou způsobit pokles plnícího tlaku a problém s regenerací.
- Pokud je DPF silně zanesený a auto je v limp modu, pasivní jízda často nepomůže - řešením je výměna nebo sofistikované chemické/ultrazvukové čištění.
- Po opravě nebo výměně DPF je nutné smazat chyby diagnostikou ISTA nebo obdobnou.
Kdy vymazat kód a kdy ne
Chci se vás opýtať. Pomôže keď pred jazdou za účelom regenerácie vymažem ten kód 480a a pôjdem sa povozit ? Ide mi o to, že nie že urobím 100km cestu medzitým mi zapise kód a regen sa nespusti. Nemáte v oku či po vymazaní naskočí hneď, alebo to trvá nejaký čas a dá to priestor regenerácii? Regeneracia sa da vynutit aj cez diagnostiku a spusti ti ju urcite..
In my experience, the light is the 2nd stage warning. The 1st stage is an error code (480a) which is caused by increased backpressure at the exhaust. Once the 1st stage (480a code) is present, the car *will not attempt to regenerate*. The 2nd stage (481a code + iDrive warning about DPF) requests a trip to the dealer. As you did the motorway trip and it reached a high enough temp for a regen to take place the thermostats aren't really the problem here.
I needed to use the cable to clear the error codes during a run. Essentially, yes. Hook up to a laptop; you'll probably get INPA software with the cable, but it's not a straightforward install.
Co dělat jako majitel BMW
- Neodkládejte opakující se výskyty kódu 480A a neřiďte auto dlouhodobě s aktivním kódem.
- Pravidelně kontrolujte baterii a nabíjecí systém při každém servisu.
- U dieselů sledujte stav DPF a při delších městských jízdách občas udělejte delší dálniční jízdu pro pasivní regeneraci.
- Při pochybnostech nechte vozidlo zkontrolovat nezávislým BMW specialistou s příslušnou diagnostikou.
| Problém | Možné řešení | Poznámka |
|---|---|---|
| Baterie / nabíjení | Kontrola, load test, výměna | Baterie obvykle 3-5 let |
| Alternátor | Diagnostika, oprava nebo výměna | Narušení dobíjení způsobí elektrické chyby |
| Řídící elektronika / senzory | Kontrola živých dat, výměna vadných senzorů | Chyby senzorů mohou generovat falešné kódy |
| DPF (zanesení) | Vynucená regenerace, chemické čištění, výměna | Po zásahu nutné smazat chyby diagnostikou |
The 480A BMW fault code is your car’s way of asking for help with its electrical system. At First Auto Centre, our team of independent BMW specialists has the knowledge, experience and equipment to diagnose and fix your 480A fault code correctly the first time. Our comprehensive BMW servicing packages also include preventative checks that can spot potential electrical issues before they trigger that dreaded 480A BMW fault code in the first place.
